• • 1080p 6.5ms LED panel for vibrant images using up to 35% less power* than standard CCFL displays
• • 23.1mm slim bezel with 5x5 display video wall capability
• • Versatile inputs include – HDMI, DVI, VGA, YPbPr, CVBS (BNC), S-video and composite video
• • Designed for 24/7 operation with 3-year limited warranty 120Hz (MEMC) 450 nits brightness with 4000:1 contrast panel
• • RS232 daisy-chain capable
• • Remote and panel control lock out
• • Built-in 10Wx2 speakers with 12Wx2 output
• • Installation options include stand or VESA® wall mount
• • PIP (Picture-in-Picture)
• • Internal Scheduler

LCD

• • Type: 55" (54.6" viewable) color TFT active matrix, wide LED
• • Display Area: 47.6" horizontal x 26.7" vertical; 54.6" diagonal
• • Optimum Resolution: 1920x1080, 600mm dot pitch
• • Contrast Ratio: 4000:1 (typ)
• • Viewing Angles: 178º horizontal, 178º vertical
• • Response Time: 6.5ms
• • Brightness 450 cd/m2 (typ)
• • Aspect Ratio: 16:9
• • Panel Surface: Anti-glare, hard coating (3H)

INPUT

• • Video Input: HDMI, DVI, component, VGA, S-video, CVBS (BNC)
• • Video Output: VGA, component, DVI (Loop through)
• • Control Input/Output: RS-232

AUDIO

• • Speakers: Internal 10w (x2)
• • Amplifier: 12-watt / 8 ohm

INPUT SIGNAL

• • TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p

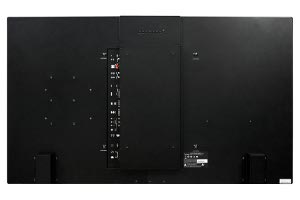

CONNECTOR

• • Analog: 15-pin mini D-sub (VGA)
• • Digital: HDMI, DVI
• • Power 3-pin plug

POWER

• • Voltage: AC 100–240V (universal), 50–60Hz
• • Consumption: 250W (typ)

CONTROLS

• • Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
• • Audio: Volume, mute, audio source
• • Panel: Power, Exit, +, –, Menu/Enter
• • VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
• • OSD Setting Languages, OSD H. position, OSD V. position, OSD timer
• • Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
• • Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
• • Input: VGA, DVI, HDMI, YPbPr

OPERATING CONDITIONS

• • Humidity: 20–90% (non-condensing)
• • Temperature (landscape): 32–104ºF (0–40ºC)
• • Temperature (portrait) 41–95ºF (5–35ºC)

RESOLUTIONS

• • RESOLUTIONS SUPPORTED:
• 640 x 480 at 60 Hz to 75 Hz
• 800 x 600 at 60 Hz, 60Hz to 75 Hz
• 1024 x 768 at 60 Hz, 60Hz to 75 Hz
• 1280 x 768 at 60 Hz, 60Hz to 75 Hz
• 1360 x 768 at 60 Hz, 60Hz to 75 Hz
• 1280 x 1024 at 60Hz
• 1600 x 1200 at 60 Hz
• 1920 x 1080 at 60Hz (recommended resolution)
• NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
• Component: 480i,480p,720p,1080i,1080p

DIMENSIONS (WxHxD)

• • Physical: 49.6" x 28.3" x 2.3" (W x H x D) (1259.8mm x 732.3mm x 599.0mm)

WEIGHT

• • Net: 65.0 lb. (29.5 kg)
• • Gross: 99.21 lb. (45.0 kg)

REGULATIONS

• • FCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®, RoHS

RECYCLE/DISPOSAL

• • Please dispose of in accordance with local, state or federal laws.

PACKAGE CONTENTS

• • LCD display, power cable, remote control with batteries, User Guide CD.

WALL MOUNT

• • VESA 200mm x 400mm

OPTIONAL ACCESSORIES AVAILABLE

• • Stand (STND-016), Wall Mount (WMK-013), Wall Mount with Locking Media Player Cradle (WMK-028)

WARRANTY

• • Three-year limited warranty on parts, labor and backlight.
