EP4646
In-store digital signage is easy with ViewSonic’s new dual screen ePoster display solution. Vivid retail messaging is easy by connecting your PC or adding your network media player to the industry standard input connections: HDMI, VGA, YPbPr, USB or composite video (A/V). Each screen can be driven separately with its own content. ViewSonic’s ePoster display can easily be connected to a corporate network by adding a network media player. Security is achieved through the locking back cover. Compatible ViewSonic media players are available in both X86 and RISC (Linux) configurations.

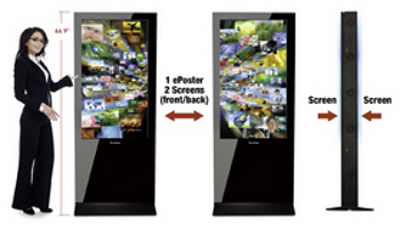

- • Dual screen 46" full HD ePoster featuring 1920x1080 resolution and tempered glass faceplate for screen protection
- • All-in-One design provides easy customer deployment with no required construction
- • Dual internal RISC media players with 2GB CF storage for playing JPEG images and digital video files
- • Built-in AC power outlet and mounting cradle for adding your own media players
- • Applications: Retail Advertising, Way-finding, Hospitality, Education
- • Automated power on/off provides easy scheduling of operation
- • 5Wx2 internal audio for playing digital audio files
- • Applications: Retail Advertising, Transportation, Hospitality, Education
DISPLAY
- • Resolution: 1920x1080 pixel resolution
- • Display size: 46" (116.8 cm)
- • Contrast Ratio: 4000:1 (typ)
- • Brightness: 450 cd/m2 (typ)
- • Color Depth: Over 16.7M color (depending on video card used)
- • Response Time: 8ms (typ gray-to-gray)
- • Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
COMPATIBILITY
- • Photo Formats: JPEG
- • Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
- • Audio Formats: WMA, MP3, M4A (AA CC )
AUDIO
POWER
- • Consumption: Max 240W
- • Save Mode (W): Off < 1W
- • Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
OPERATING CONDITIONS
- • Temperature: 32–104º F (0–40º C)
- • Humidity: 20–90% (non-condensing)
MEMORY
DIMENSIONS (WxHxD)
- • Physical: 27.8" x 66.9" x 17.7" (706mm x 1700mm x 450mm)
WEIGHT
- • Net: 264.55 lbs. (120 kg)
- • Gross: 286.60 lbs. (130 kg)
REGULATIONS
CONNECTOR
- • Network Ethernet RJ-45 (10/100M)
- • USB 2.0 (x1)
- • Card Reader: 2GB Compact Flash
- • HDMI, VGA, YPbPr, USB, A/V, RJ45 Pigtail
PACKAGE CONTENTS
- • ePoster, power cord, remote control with batteries, key, wall mount bracket, Quick Start Guide, User Manual and Software on CD
CONTENT MANAGEMENT
- • Software: Signage Manager Express
- • Operating System: MS Windows
STORAGE ENVIRONMENT
- • Temperature: -4–140º F (-20–60º C)
- • Humidity: 10–90% (non-condensing)
